Vigitron MaxiiNet L2 Drop and Insert 3-Port Fast Ethernet Switch, 60W PoE, Network Standards IEEE 802.3at/af, RJ-45 Ports, 10/100Base-T, Aluminum Housing - VI30103 (1 Year Warranty)

Name: Vigitron MaxiiNet L2 Drop and Insert 3-Port Fast Ethernet Switch, 60W PoE, Network Standards IEEE 802.3at/af, RJ-45 Ports, 10/100Base-T, Aluminum Housing - VI30103 (1 Year Warranty)
Brand: Vigitron
SKU: VI30103
Price: 37500 JPY
Availability: OutOfStock

Vigitron MaxiiNet VI30103 3-Port PoE switch showing dual Ethernet ports and compact black aluminum housing-alternate-image1

Vigitron MaxiiNet L2 Drop and Insert 3-Port Fast Ethernet Switch, 60W PoE, Network Standards IEEE 802.3at/af, RJ-45 Ports, 10/100Base-T, Aluminum Housing - VI30103 (1 Year Warranty)

Vigitron VI30103

¥37,500

ブランド新しい

入手可能時間: 完売しました！

1年保証
30日間の返品可能
カーボンニュートラル

製品の主な特長

🔌 3-Port Layer 2 PoE switch with drop and insert capability
📡 Extends network reach beyond standard 328ft (100m) limit up to 3,000ft (909m)
⚡ Supports up to 60W PoE power with 30W per port
🔄 Cascadable design supporting up to 9 IP cameras on single network port
🌐 Compliant with multiple IEEE standards including 802.3at/af PoE
🚀 10/100Base-T Fast Ethernet technology
💪 Durable aluminum construction in compact size (2.7" x 1.8" x 1")
♻️ RoHS and WEEE compliant for environmental friendliness
🔋 Low power consumption of 1.50W
🔗 Supports twisted pair media with full network management features

¥37,500

専門家に質問する

ライブチャットお問い合わせ

お電話でお問い合わせください。

888.267.9566

Minimize

Info

Info Page

Reviews Top

説明

テック・スペック

返金ポリシー

Vigitron

VI30103

Vigitron MaxiiNet L2 Drop and Insert 3-Port 60W PoE Switch (VI30103) - Extended Network Coverage Solution

The Vigitron MaxiiNet VI30103 is a revolutionary Layer 2 PoE switch designed for extending IP camera networks beyond traditional Ethernet limitations. This compact yet powerful 3-port switch enables multiple camera connections on a single cable run, supporting distances up to 3,000 feet (909m) while delivering up to 60W PoE power.

Advanced Network Extension Capabilities

Extends network coverage beyond standard 328 feet (100m) Ethernet limit
Supports cascading configuration for up to nine IP cameras on a single network switch port
Features three Fast Ethernet PoE ports with 10/100Base-T technology
Delivers up to 30W power per port with 60W total PoE budget

Versatile Installation Applications

Perfect for:

Parking lot surveillance systems
Office building perimeter security
Fence-line monitoring applications
Quick camera additions without new home-run cables

Professional-Grade Specifications

Feature	Specification
Networking Standards	IEEE 802.3at, 802.3af, 802.3ab, 802.3z, 802.1p/Q/D/s
Physical Dimensions	2.7" x 1.8" x 1" (LxWxH)
Construction	Durable aluminum housing
Power Consumption	1.50W (device only)

Environmental Compliance

The VI30103 meets modern environmental standards including:

RoHS (Restriction of Hazardous Substances) compliant
WEEE (Waste Electrical and Electronic Equipment) directive adherent
Eco-friendly design with minimal power consumption

Applications

Data and PoE transmission of multiple cameras on a single cable run
Parking lots, office building and fence perimeter applications, continuous cable run for multiple cameras reducing the number of home-run cables
Expanding port count of an existing installed network switch for adding a new camera

The Vi30103 is a 3-port Layer 2 PoE switch providing drop and insert capability for connecting several IP devices along a single cable run. The Vi30103 provides a cost effective method for increasing distances beyond the standard Ethernet limit of 328 feet (100m). Multiple units can be cascaded to provide up to nine IP cameras to be connected to a single network switch port over distances of up 3,000 feet (909m).

For small systems the Vi30103's Layer 2 network capability can eliminate the need for network switches saving costs and rack space. It also can significantly decrease network switch costs by increasing the port capacity of the switch. As a mini network switch, the Vi30103 avoids the potentials for transmission collisions by complying with IEEE standards. It is an easy and quick solution to add an extra camera without requiring to have a new home-run cable.

The Vi30103 can be powered by a 60W PoE source or a local power supply. Additional power up to 60W can be inserted at any point along the cable run where power outlets are available and provide the ability to power IP cameras up to 30W per port.

General Information
Manufacturer	Vigitron, Inc
Manufacturer Part Number	VI30103
Brand Name	Vigitron
Product Line	MaxiiNet
Product Model	Vi30103
Product Name	MaxiiNet L2 Drop and Insert 3-Port 60W PoE Switch
Product Type	Ethernet Switch

Interfaces/Ports
Total Number of Network Ports	3
Network (RJ-45)	Yes
Port/Expansion Slot Details	3 x Fast Ethernet PoE

Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-T

Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3at,IEEE 802.3af,IEEE 802.3ab,IEEE 802.3z,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1D,IEEE 802.1s,IEEE 802.3u,IEEE 802.3x,IEEE 802.3w

Power Description
PoE (RJ-45) Port	Yes
Power Source	Power Supply
Power Consumption	1.50 W

Physical Characteristics
Product Material	Aluminum
Height	1''
Width	1.8''
Length	2.7''
Weight (Approximate)	3.04 oz

Miscellaneous
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Return Policy	Time to Return
Standard Return Policy	We offer a hassle-free 30-day returns policy for domestic (US) orders, excluding non-refundable items. Refund or Replacement within 30 days of the delivery date. All products that fall under the Standard Return Policy qualify for our 30-Day Hassle-Free Returns. Please see the section above for more details.
Replacement Only Return Policy	Replacement within 30 days of the delivery date.
Manufacturer Only Return Policy	Covered by the manufacturer's warranty. Please refer to the terms and conditions for the manufacturer's warranty or contact the manufacturer.
Holiday Extended Return Policies	Extended Holiday Return Policy. Qualifying purchases of products displaying the " Extended Holiday Return Policy ", from November 1st, 2023 to December 25, 2023, are eligible for a Refund or Replacement until January 31, 2024. Extended Holiday Replacement-Only Return Policy Qualifying purchases of products displaying the " Extended Holiday Replacement-Only Return Policy ", from November 1st, 2023 to December 25, 2023, are eligible for a Replacement until January 31, 2024.

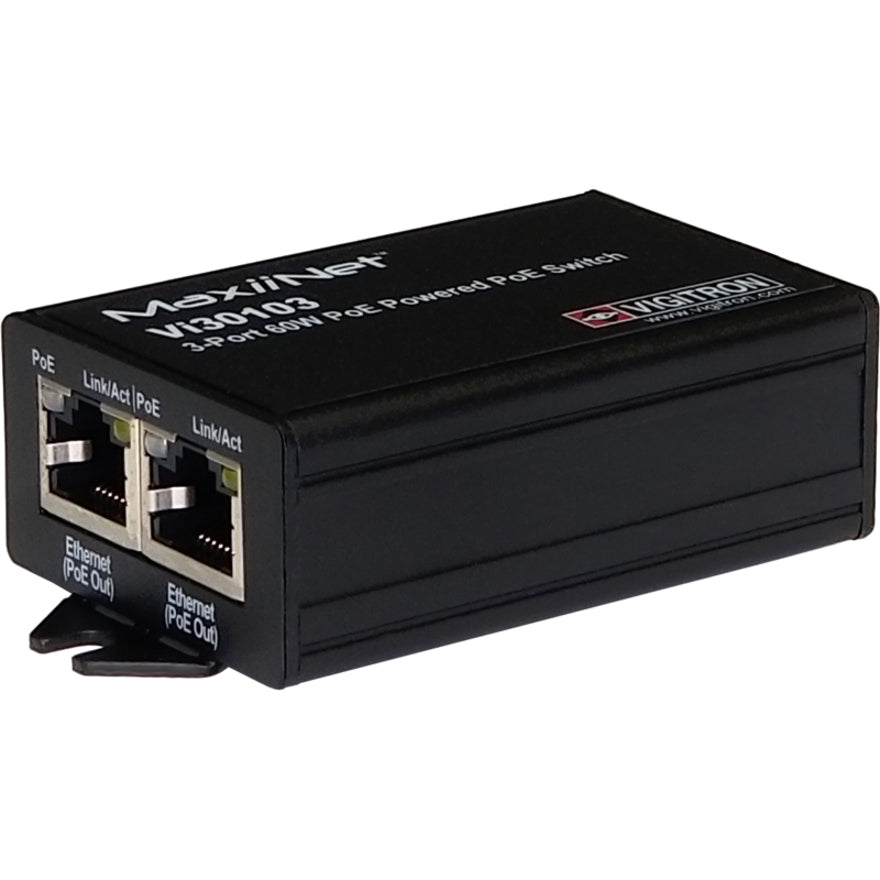

Vigitron MaxiiNet VI30103 3-Port PoE switch showing dual Ethernet ports and compact black aluminum housing

Extended Range PoE Solution with Dual Ethernet Ports

The Vigitron MaxiiNet VI30103 showcases its efficient dual-port design, enabling seamless connection of multiple IP devices along a single cable run. The compact aluminum housing features clearly labeled Link/Act PoE ports, making installation and troubleshooting straightforward. This Layer 2 switch extends network capabilities beyond standard Ethernet limitations while maintaining robust PoE power delivery up to 60W. The sleek black enclosure houses advanced networking technology that supports multiple IEEE standards, ensuring compatibility with a wide range of PoE devices. Its space-saving form factor makes it ideal for discrete installation in various environments, from office buildings to parking facilities.

Technical Specifications

3-Port Fast Ethernet configuration with PoE capability
60W PoE power budget for connected devices
Supports distances up to 3,000 feet (909m)

Applications

Extended surveillance camera deployments in parking structures
Multi-camera setups along building perimeters
Network expansion in locations with limited cable access

よくある質問

The VI30103 is a MaxiiNet L2 Drop and Insert 3-Port 60W PoE Switch manufactured by Vigitron. Its key features include 3 Fast Ethernet PoE ports, Layer 2 switching capabilities, and the ability to extend network distances beyond the standard 328 feet Ethernet limit up to 3,000 feet (909m). The switch supports PoE power up to 60W and can deliver up to 30W per port, making it ideal for powering IP cameras and other PoE devices in a daisy-chain configuration.

The VI30103 can be powered either by a 60W PoE source or a local power supply. It features PoE capabilities on its RJ-45 ports and can provide up to 30W per port for connected devices. The switch itself has a low power consumption of just 1.50W. Additional power up to 60W can be inserted at any point along the cable run where power outlets are available, providing flexible power options for IP cameras and other PoE devices.

The VI30103 supports numerous IEEE networking standards including: IEEE 802.3at (PoE+), IEEE 802.3af (PoE), IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p (QoS), IEEE 802.1Q (VLAN), IEEE 802.1D (Spanning Tree), IEEE 802.1s, IEEE 802.3u (Fast Ethernet), IEEE 802.3x (Flow Control), and IEEE 802.3w. This comprehensive standards support ensures compatibility with a wide range of network devices and configurations.

The VI30103 features a compact aluminum construction with dimensions of 2.7" length, 1.8" width, and 1" height. It weighs approximately 3.04 ounces, making it lightweight and easy to install. The aluminum construction provides durability while maintaining a small form factor suitable for various installation scenarios.

The VI30103 is primarily designed for data and PoE transmission of multiple cameras on a single cable run. It's ideal for parking lots, office building and fence perimeter applications where continuous cable runs for multiple cameras are needed. It's also perfect for expanding the port count of an existing network switch when adding new cameras, and can significantly reduce the number of home-run cables required in an installation.

The VI30103 can extend network distances well beyond the standard Ethernet limit of 328 feet (100m). When multiple units are cascaded together, they can support connections of up to 3,000 feet (909m), allowing up to nine IP cameras to be connected to a single network switch port. This makes it an excellent solution for large-scale installations requiring extended reach.

The VI30103 provides Fast Ethernet connectivity with 10/100Base-T support through its three RJ-45 ports. It operates as a Layer 2 switch and supports twisted pair media type. The switch includes PoE capabilities on all ports and complies with IEEE networking standards to prevent transmission collisions, ensuring reliable data transmission for connected devices.

Yes, the VI30103 is environmentally friendly and complies with major environmental standards. It meets both the Restriction of Hazardous Substances (RoHS) directive and the Waste Electrical and Electronic Equipment Directive (WEEE). These certifications ensure the product is manufactured with environmental consciousness and proper disposal considerations.
